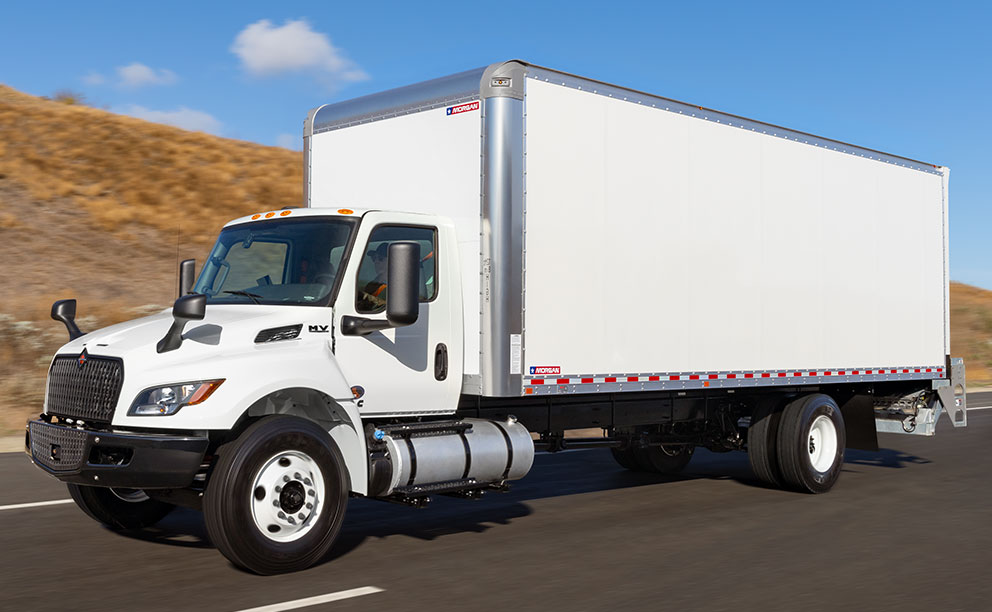

How do you find the best dry freight truck body in the business? Look for the Gold Star dry freight truck bodies that offer standard features, and industry-specific options, designed to make your job easier and more efficient. Quality construction delivers the dependability you rely on every day, to get the job done.
Design flexibility makes it easy to spec the features that will satisfy your unique needs. From body size and construction material, to flooring, lighting and bumpers, etc., every dry freight body is designed especially for your business.

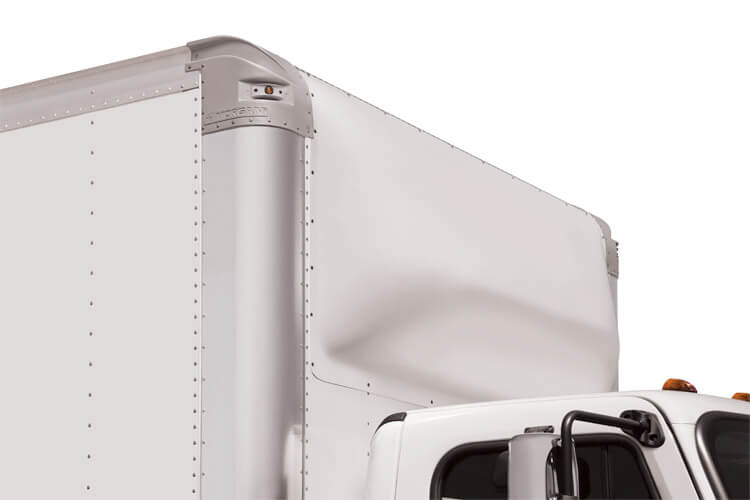

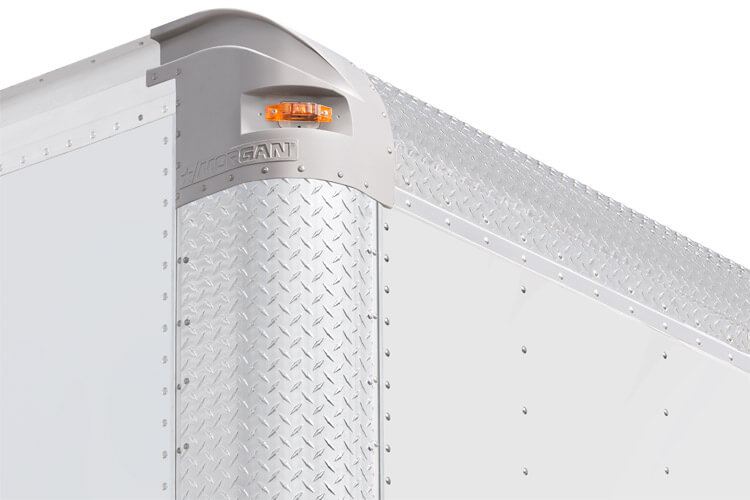

Improved fuel efficiency saves you money. That's why Morgan's Gold Star dry freight bodies feature aerodynamic front-end design that reduces wind-resistance and decreases fuel-consumption. Morgan's patented poly-tuff corner caps also add up to greater durability and resistance to the elements for better protection of your truck body, and your payload.

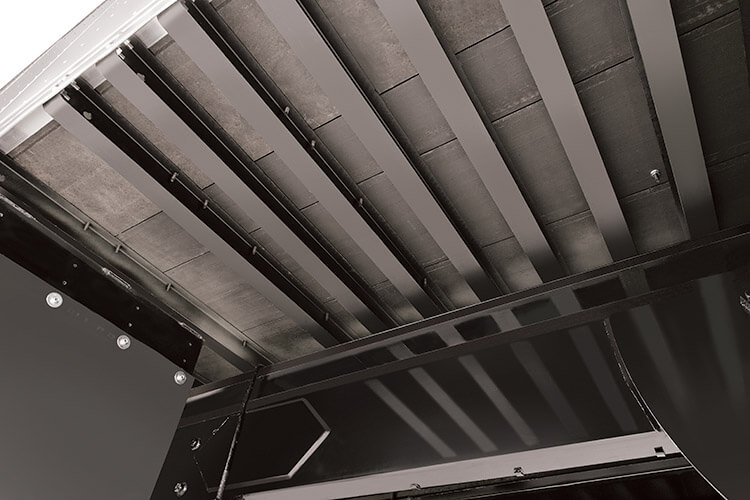

Morgan's dry freight body sub-frame delivers light weight without compromising strength. All-steel sub-frame components and 12-inch on-center support placement, provide strength and durability where it's needed, while corrosion-resistant rolled steel 3" I-beam cross-members and 4" longrails reduce overall weight. Morgan's standard M-Guard undercoating provides an added layer of protection for your longrails and wheel pans. Choose our optional M-Guard UC012 full-body undercoating for even greater protection against the elements across the entire subframe.
The rugged galvannealed steel rear frame, and durable imron-white finish of Morgan's Gold Star dry freight body, help to protect your body and your cargo from the elements. The innovative design of the built-in header, rain deflector and clearance light guard, provide added damage protection. And Morgan offers a variety of options, including rear view cameras, and custom lighting to enhance safety and accommodate your specific needs.
Moving in and out of the cargo area is made easier with Morgan's standard curb-side and road-side grab handles and pooched-surface bumper/steps. Improved traction supports greater efficiency and safety. And a wide range of bumper configurations, including step, drop-step, intermediate steps, under-ride bumpers, walk-ramps, and a variety of bumper blocks, are available to satisfy your unique needs.

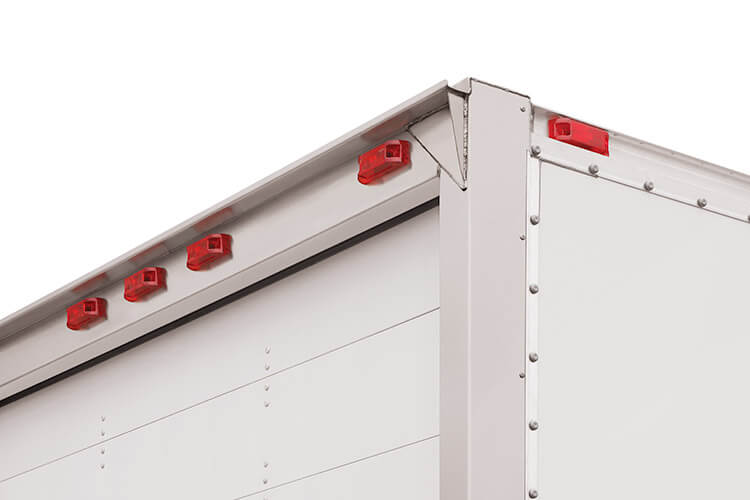

Visibility is enhanced with Morgan's range of LED lighting packages. Bright LED (FMVSS-compliant) lighting includes a dome-light with indicator-switch mounted in the cab, and exterior sealed clearance lights, corner cap, side top rail and rear header lights as standard on all Morgan bodies. Custom lighting configurations are also available to increase visibility.

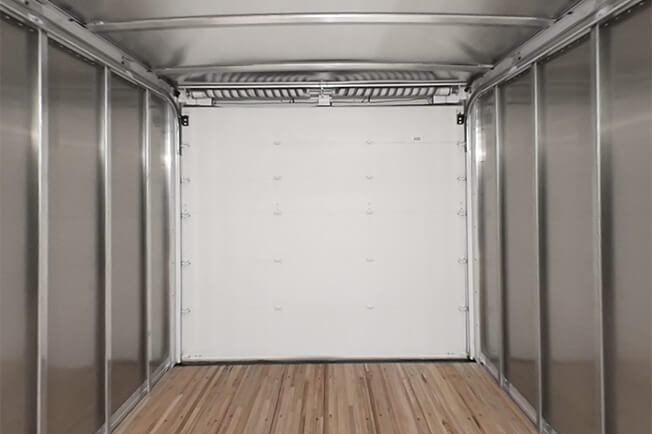

Morgan's standard overhead roll-up door provides easy access to your cargo, Morgan's optional swing panel doors are also available and designed to meet your specific needs. Morgan also offers a variety of door sizes and configurations to facilitate user-friendly cargo access.
Morgan's Gold Star Truck Body roof uses a single piece of .032" mm crowned aluminum sheeting to minimize seams where water tends to infiltrate. The gentle bow is reinforced with anti-snag supports, positioned 24-inches on-center, to provide added strength without adding unnecessary weight. Water sheds quickly to minimize the possibility of infiltration that can compromise cargo. And an optional translucent roof is also available to take full advantage of ambient light throughout the cargo area.
Gold Star truck body wall construction can be spec'd to accommodate the products you move. Whether you need a lightduty van body for parcel delivery, a cargo truck for boxed product, or a 28-foot box truck to move furniture of every configuration, Morgan truck bodies provide design and material options to make it easier to overcome the challenges you face every day.

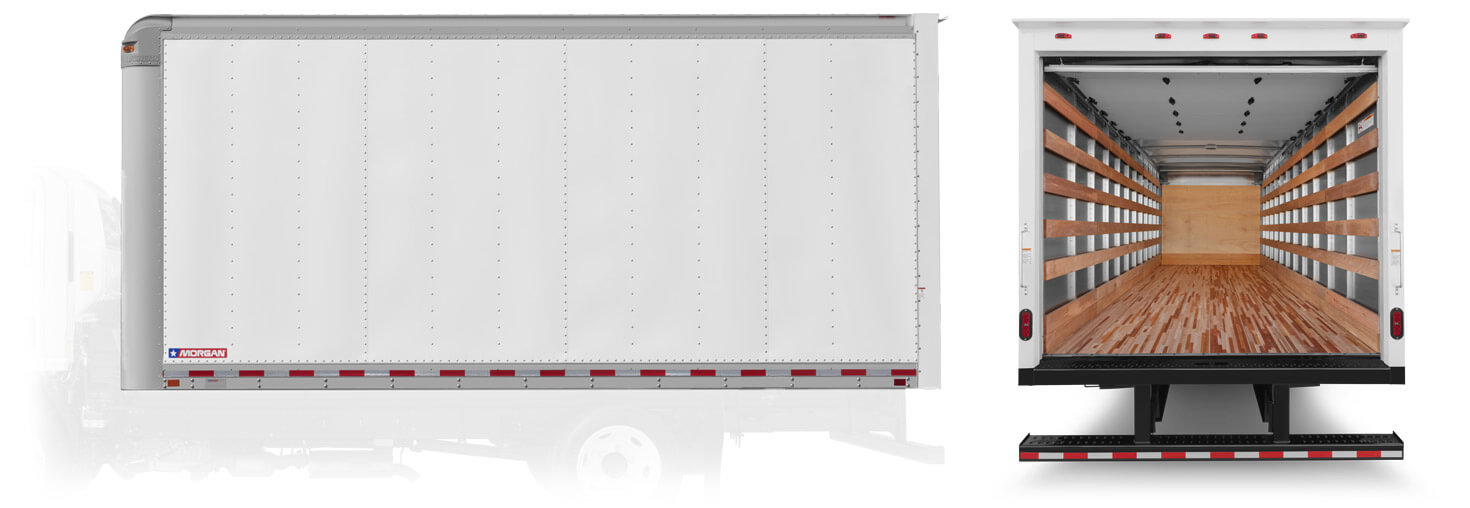

Affordability and light weight are key considerations when it comes to selecting aluminum wall construction for your box, straight-truck or van body, because light weight adds up to reduced fuel consumption, and lower operating costs. But light weight doesn't mean compromised strength when you have Morgan ingenuity built-in!
Extruded aluminum top and bottom rails with 1 3/8" deep galvanized z-shaped steel vertical posts installed 16" on-center, provide superior structural support for your truck body and your payload. And the .040" aluminum skin exceeds industry standards. Aluminum is also corrosion-resistant, making it an excellent choice when it comes to protecting your cargo from the elements.
Morgan's Smooth Wall aluminum truck bodies deliver all of the benefits of aluminum wall construction - minus the vertical surface rivets. The smooth, clean skin provides an even more attractive advertising platform for your business.

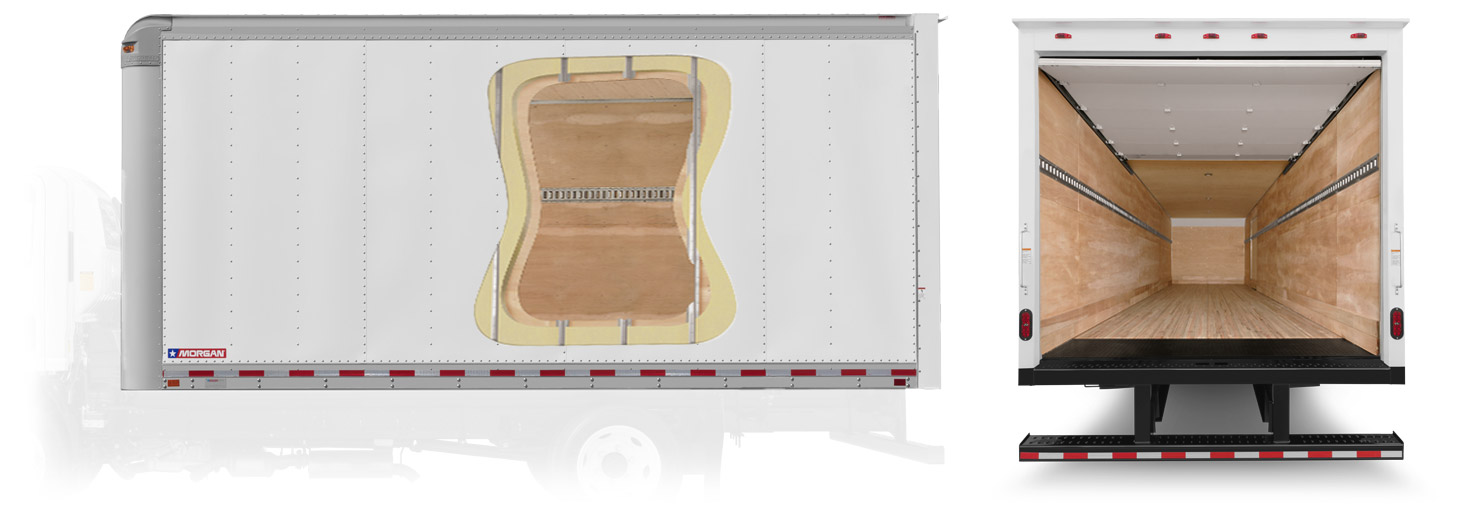

When temperature retention is necessary, but refrigeration is not, Morgan fills the niche with a dry freight aluminum truck body with insulated wall construction. Polystyrene block foam adds insulative benefits to your body, without adding excessive weight or expense. Morgan – the Best Bodies for Your Business!

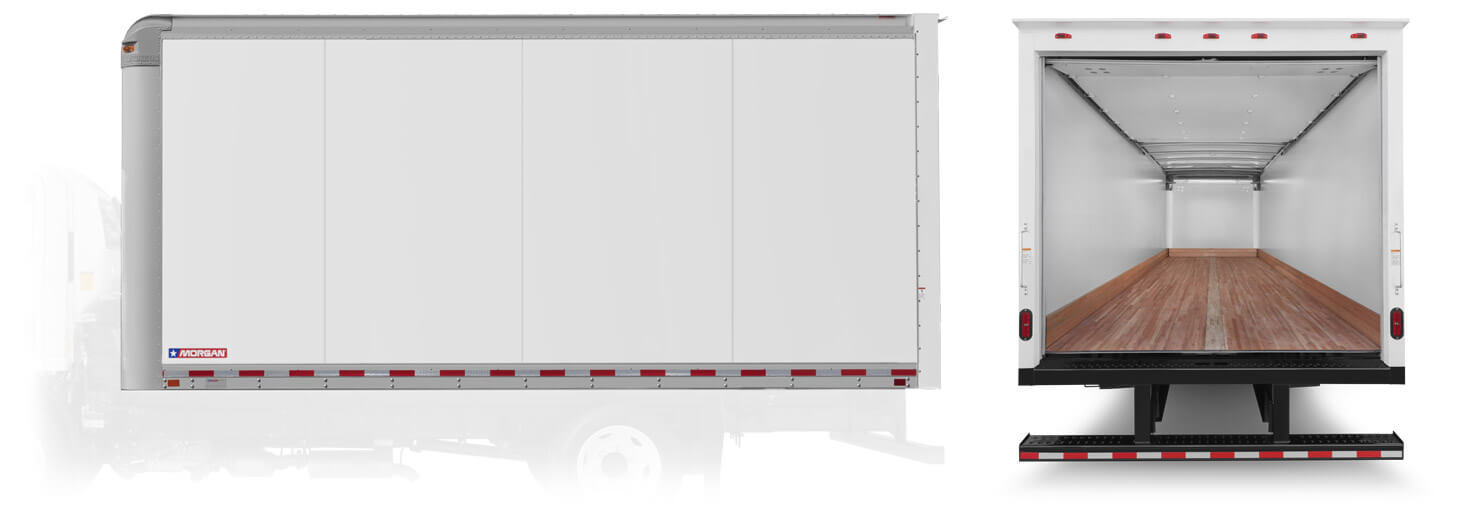

Morganplate delivers a unique combination of strength and versatility for those who recognize the value in having your truck body perform double-duty as both a delivery or service vehicle and an excellent marketing tool.
Composite construction consisting of two external skins thermally bonded to a high-density polyethylene core, makes Morganplate strong, durable, energy absorbent and impact resistant. Innovative design and quality construction help to protect your valuable cargo on the inside; while outside, Morganplate's clean, uninterrupted surface is a perfect canvas for custom-graphics.
Morgan's FRP panels include a plywood core (3/8" on truck bodies less than 18' and 1/2" on truck bodies more than 18'), entirely encased in polyester resin, reinforced with high-strength woven fiberglass. It's tough. It's durable. And it resists dents and scratches, inside and out. The smooth body exterior surface is also a great place to display custom-graphics and promote your business. Morgan also offers custom paint and decal installation for added convenience.
Box truck sizes, features, and configurations matter when it comes to spec'ing the right truck body for your business. That's why Morgan's Dry Freight Truck Media Center gives you the time and opportunity to walk through and explore our truck bodies, whenever and wherever you choose.

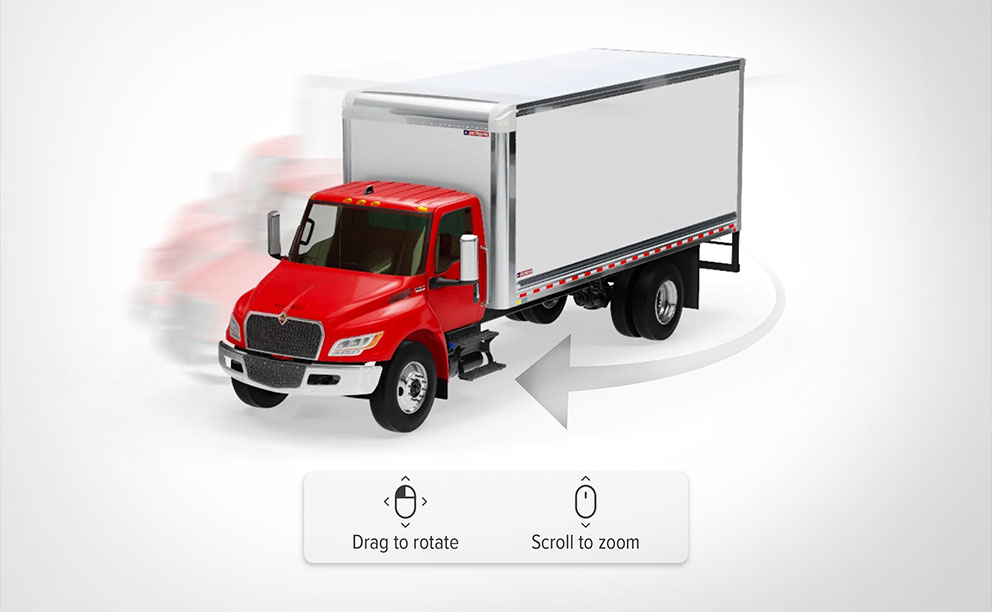

Use your mouse or finger to rotate the interactive 360 tour. Pinch/scroll to zoom in and out.
Morgan Truck Body
Every Angle | Inside and Out | 360° Rotation + Zoom
Build and quote your truck body to exact specifications. Choose your preferred OEM chassis, truck body dimensions, construction preferences, access points, interior options, and exterior options!
Build and Quote Yours Now
Enhanced Technology
Improve Visibility › Enhance Safety › DVR Incident Recording
Situational Awareness Packages provide ENHANCED VISIBILITY inside and outside of the vehicle. All at the driver's fingertips.
Learn More InformationClick on any brochure below to download and view our current product literature to learn more about standard and optional features and gain valuable information for your purchasing decision.
Check out Morgan's standard dry freight brochure to learn about what makes the Gold Star the Gold Standard of the industry!

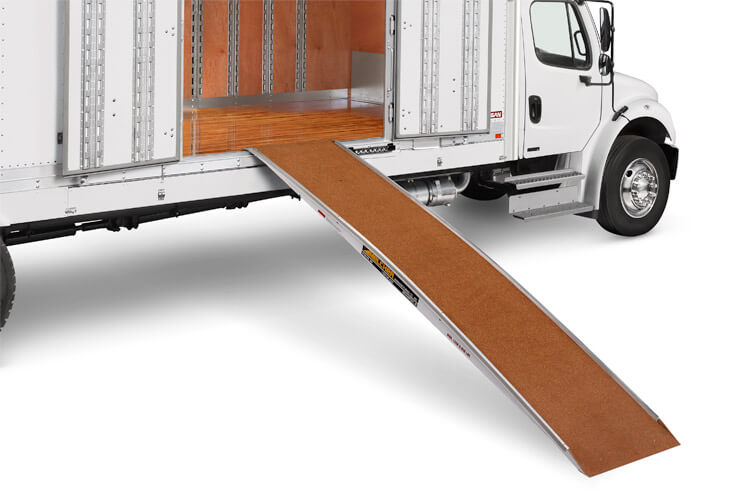

View BrochureDownload this brochure to learn about our exciting ramp-door option that is now available in a variety of models in addition to our Proscape-Van body.
View BrochureWhether you need a 10-foot box truck for small parcel delivery, a 28-foot furniture-mover, or a custom body to meet the unique needs of your business, a Morgan dry freight body will become one of the most important tools of your trade.
Options make your truck body one of a kind, just like your business. From box truck sizes, bumper selections, floors, walls, roof construction, or the location of your doors, customizing a Morgan dry freight truck body makes it your truck body!
Diamondplate Step Bumper

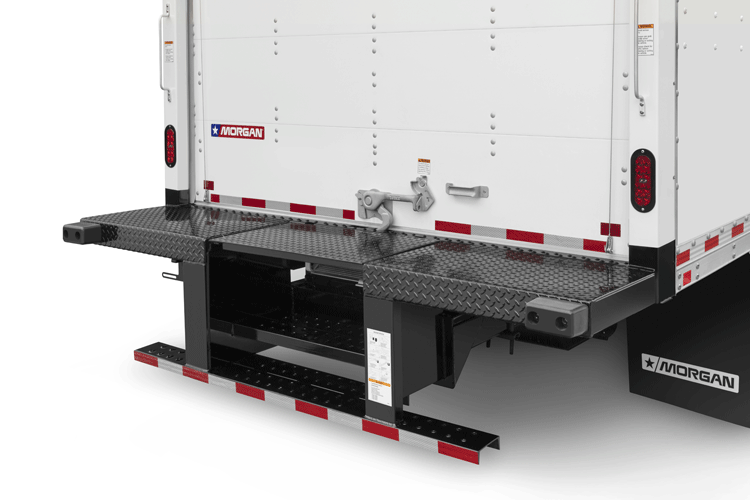

DOT (ICC) Under-Ride Bumper w/ Optional Side Steps, Closure Plate & Bumper Blocks

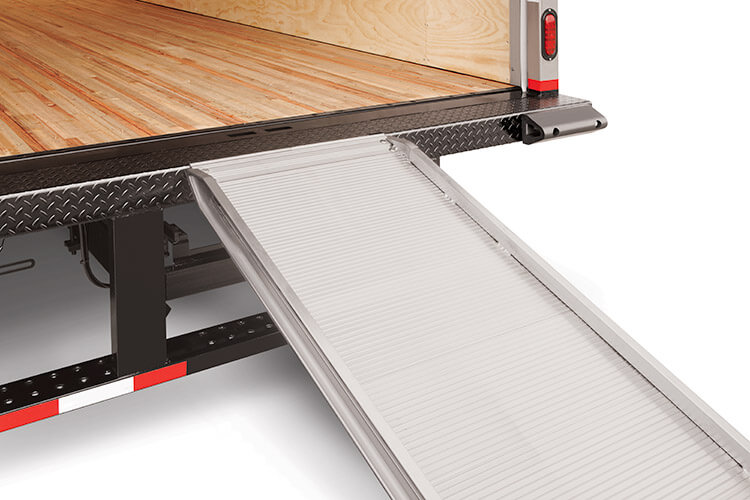

Drop Step Bumper w/ Optional Walkramp
Drop Step
ICC Underide Bumper w/ Optional Walkramp and Bumper Blocks
Step Bumper
2 Step Fixed w/ Walk Ramp and Bumper Blocks
2 Step Fixed w/ Bumper Blocks
2 Step Fixed Galvanized
2 Step Fixed
Step Bumper
Rubber Bumper Block
Variety of Bumpers Available
Chicago Style Bumper / Center Style Bumper
Varying Configurations

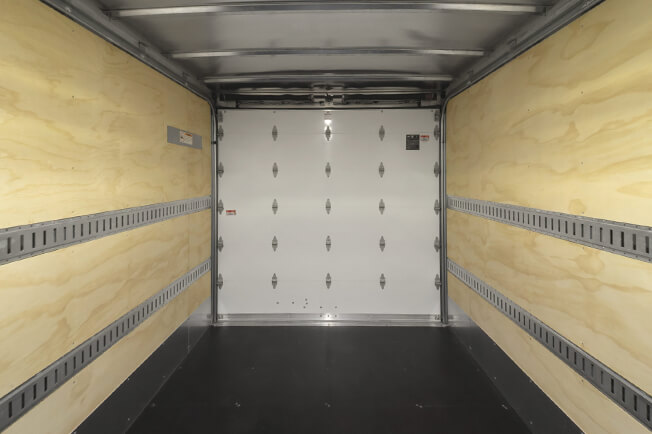

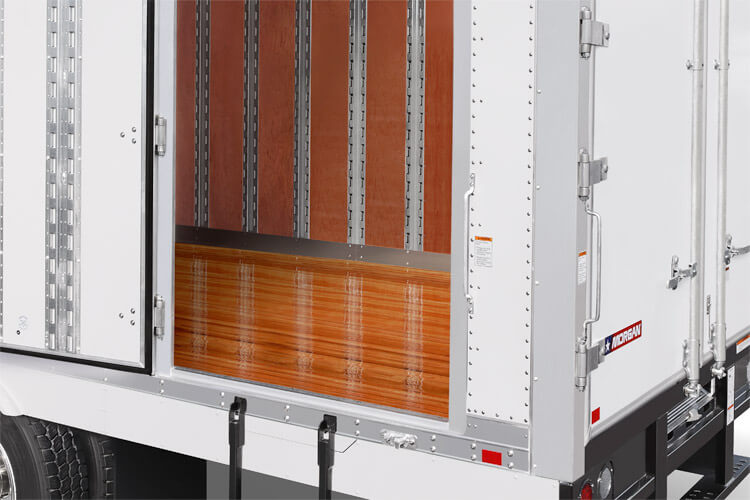

Plywood and Slat Liner
Tie Rings

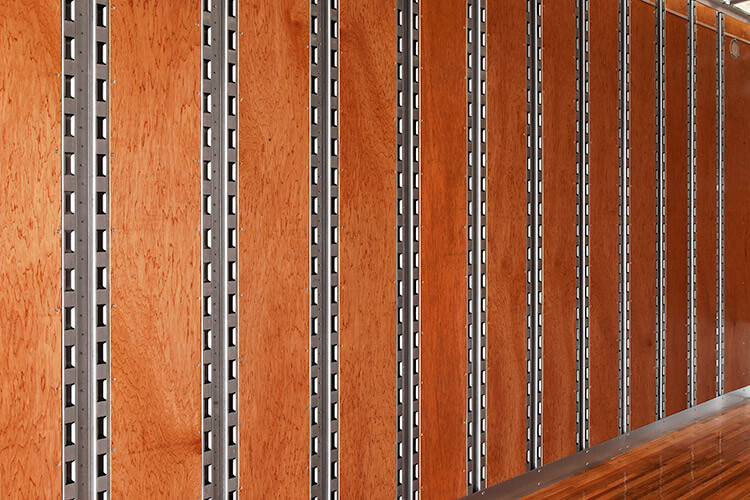

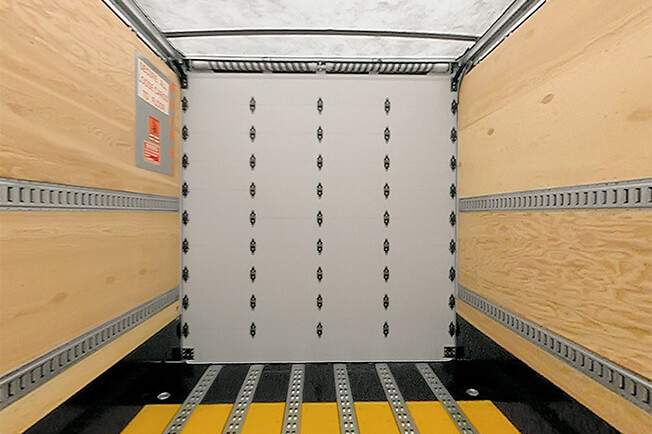

Vertical E-Track

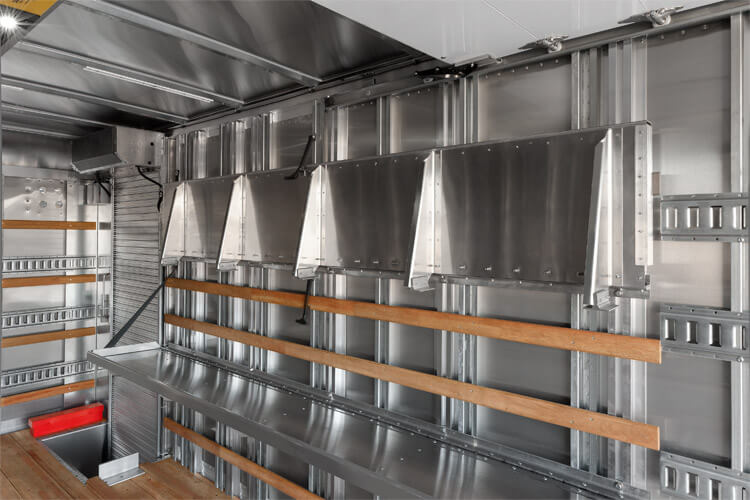

Foldable Metal Shelving
F-Track on Walls

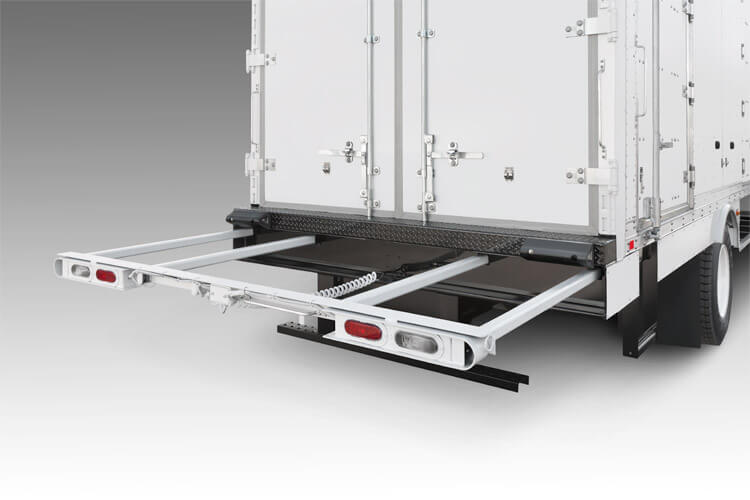

Slide Out Platform Tailgate
E-Track in Rear Frame

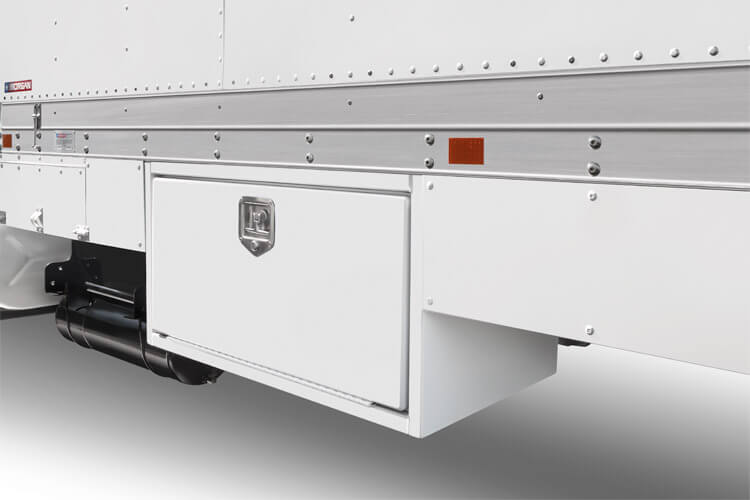

Metal Toolbox

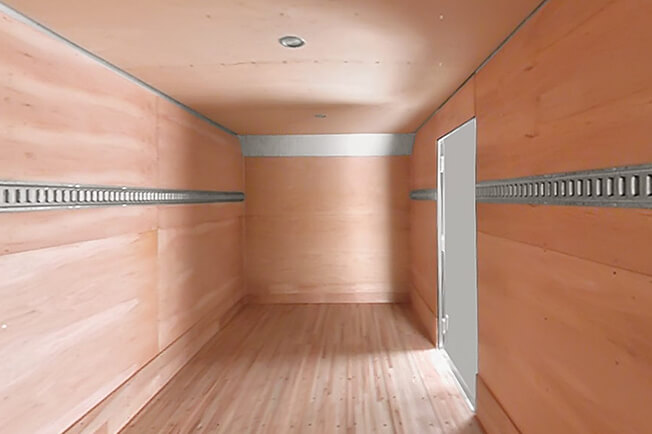

Slat Liner & E-Track
Load Bars
Garment Bar
F-Track on Floor and on Ceiling

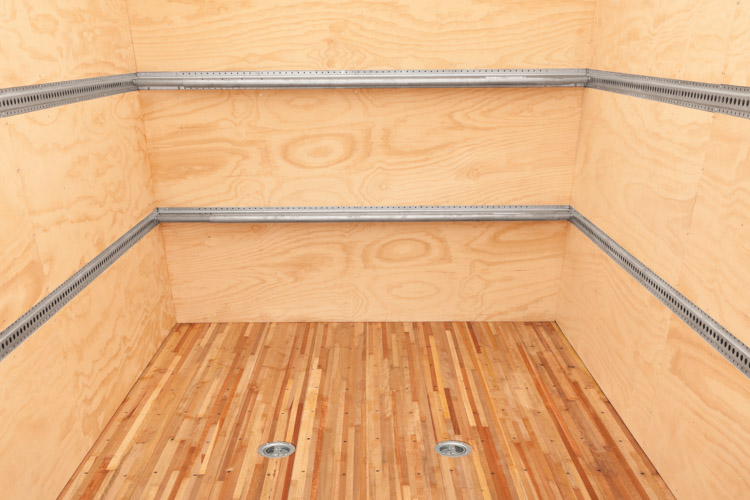

In Floor D-Rings
Retractable Floor Tie Down

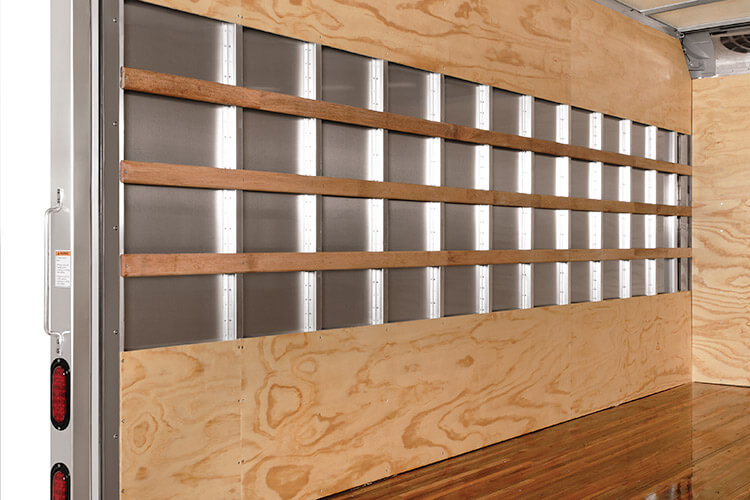

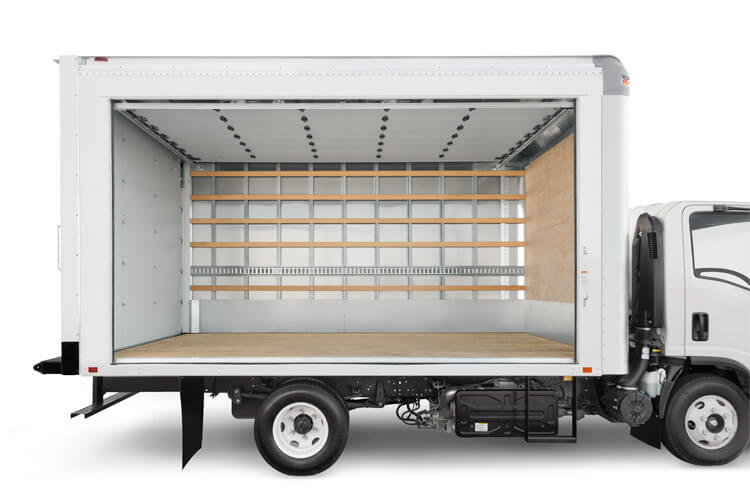

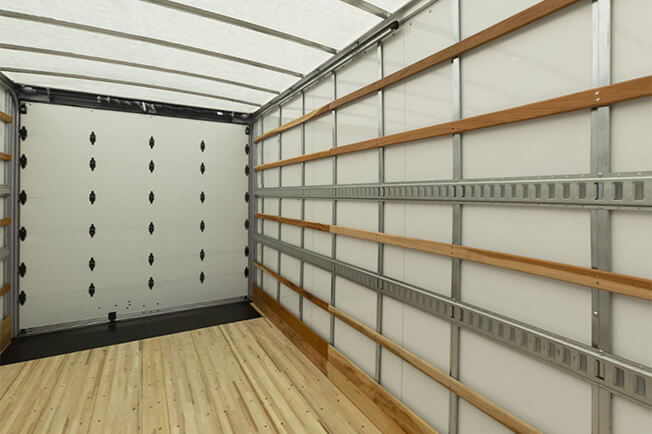

Slat Liner w/ Vertical E-Track
E-Track, Carpeted Slat and Scuffs
Slat Liner

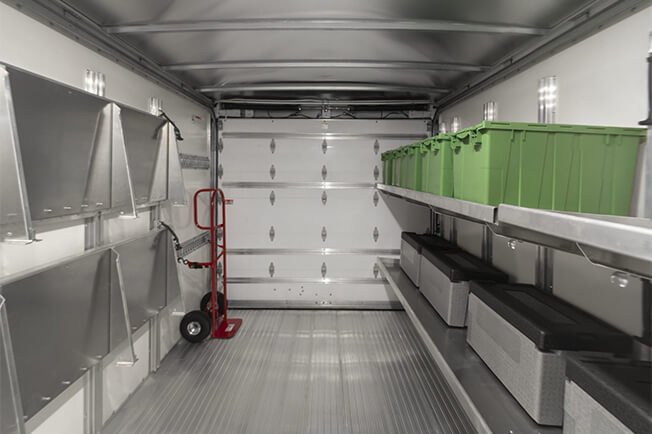

Polypropylene Toolboxes
Polypropylene Toolboxes
Metal Toolbox
Metal Toolbox

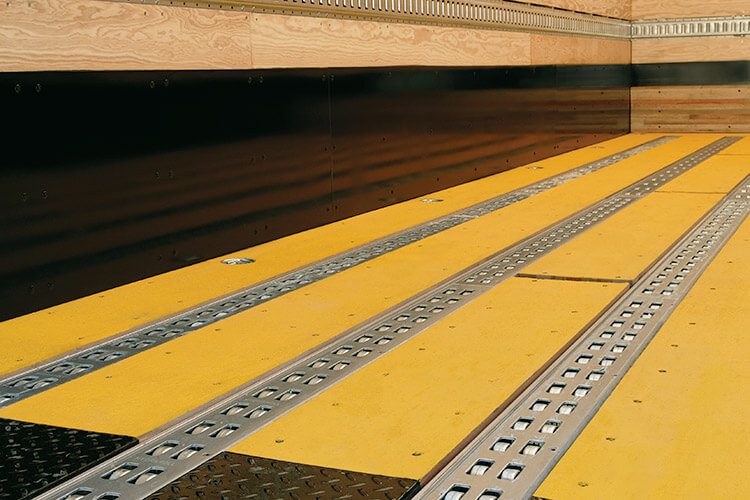

Roller System
Metal Scuff

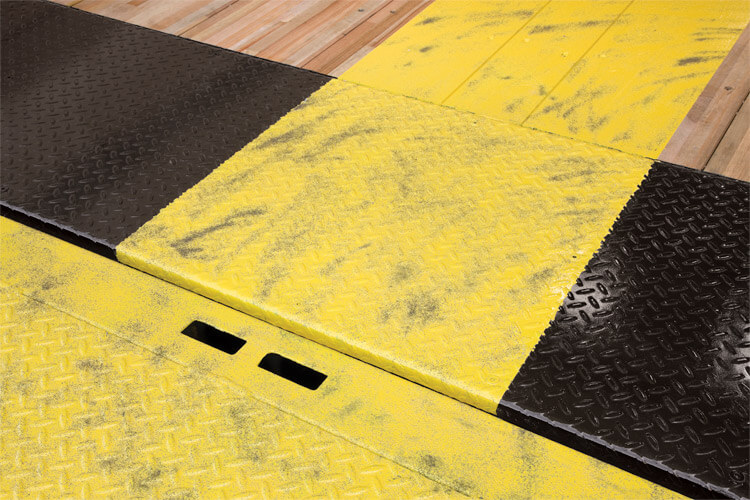

Anti-Slip Surface

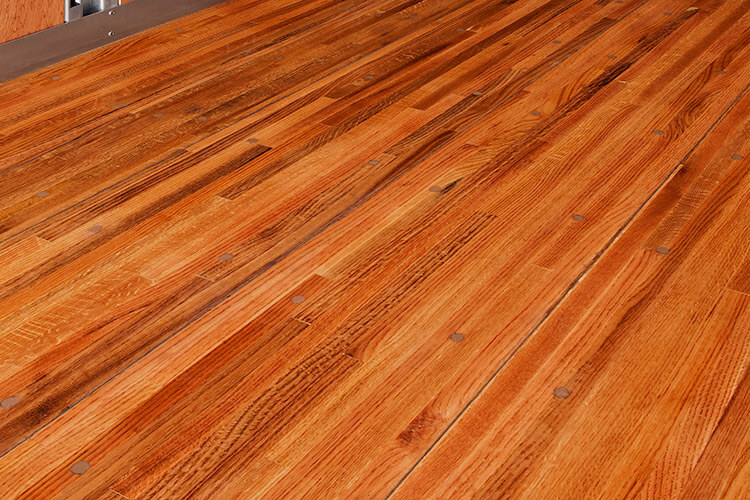

Polyurethane Vanish
Slip-Resistant Rear Threshold

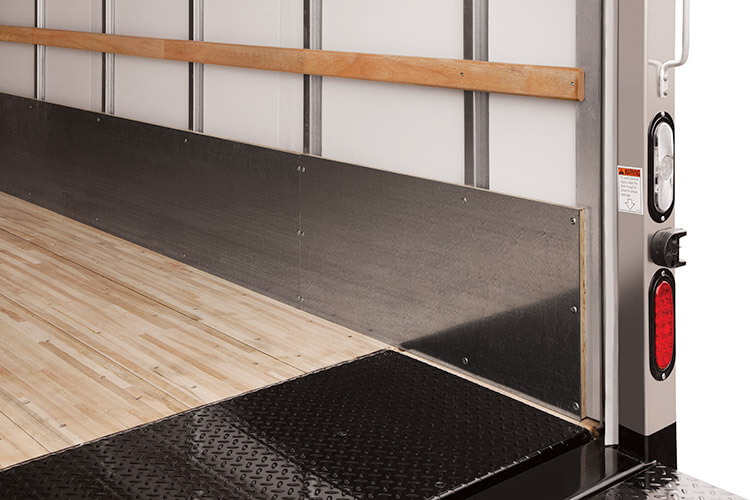

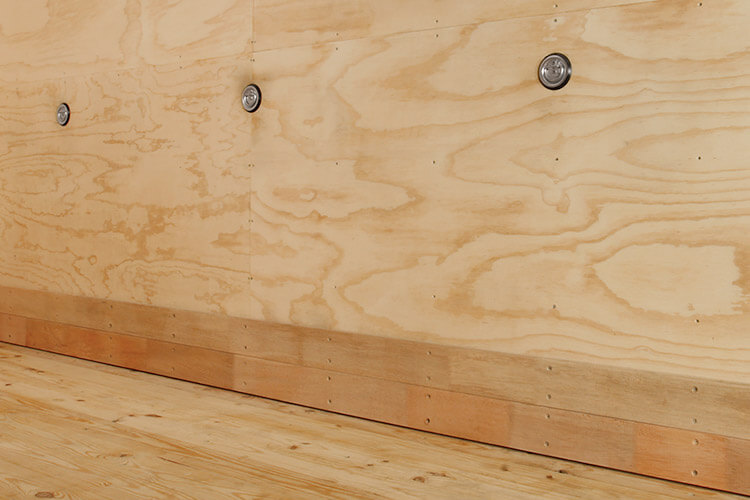

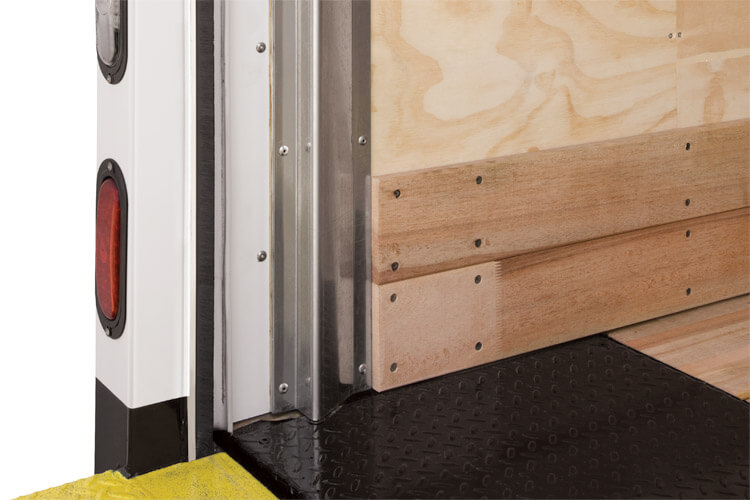

Reinforced Front End with Wood Scuff
Corrugated Scuff Plate
Reinforced Front End

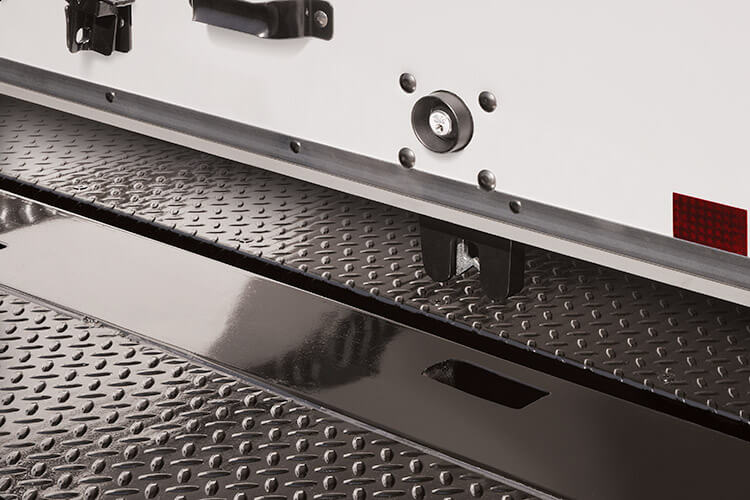

Diamondplate Flooring
Extruded Aluminum Scuff
Extruded Aluminum Scuff
Rail Liftgate
Tuck Under Liftgate w/ Bumper Blocks
Galvanized Tuck Under
Slide Under Liftgate
Tuck Away Liftgate
Rail Liftgate
Tuck Under
LED Lighting
LED Lighting

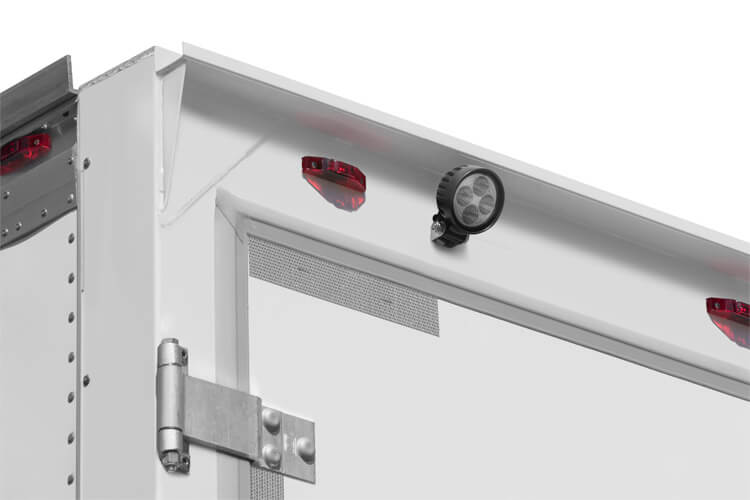

Interior Spotlight
Spotlights
Extra Cross Members on Rear
Reinforced Stainless Steel Rear Frame w/ Gusset

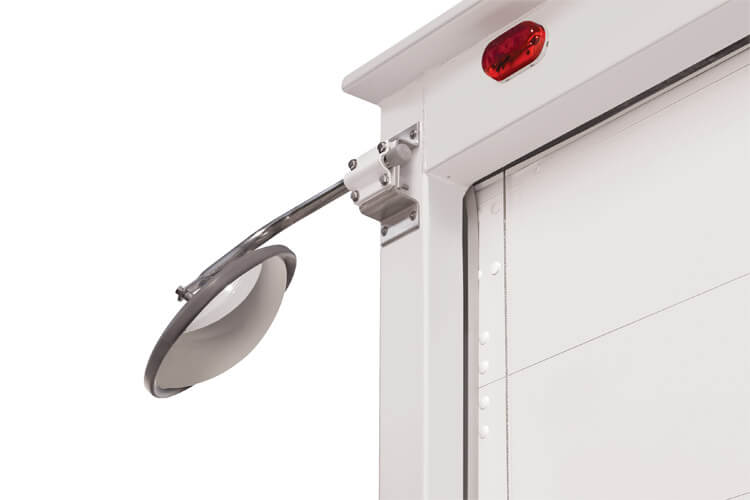

Convex Rear Mirror
Wind Deflector
Palet Guide

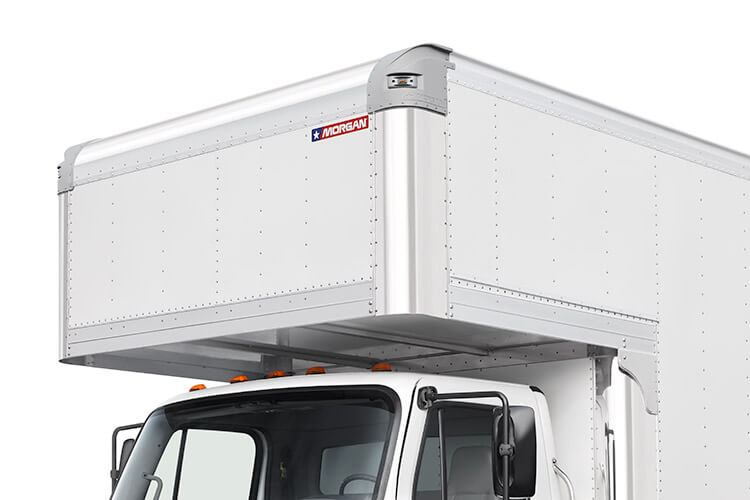

Cab Over Peak
Diamondplate Radius

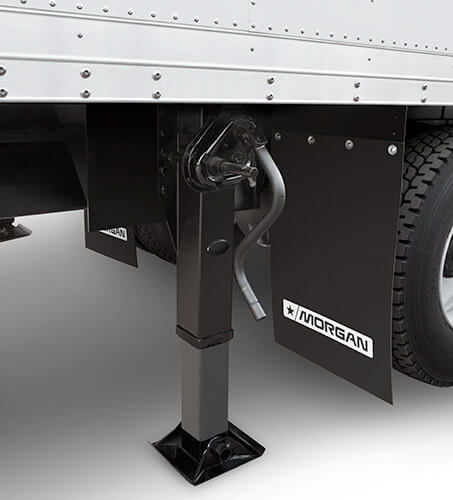

Landing Gear

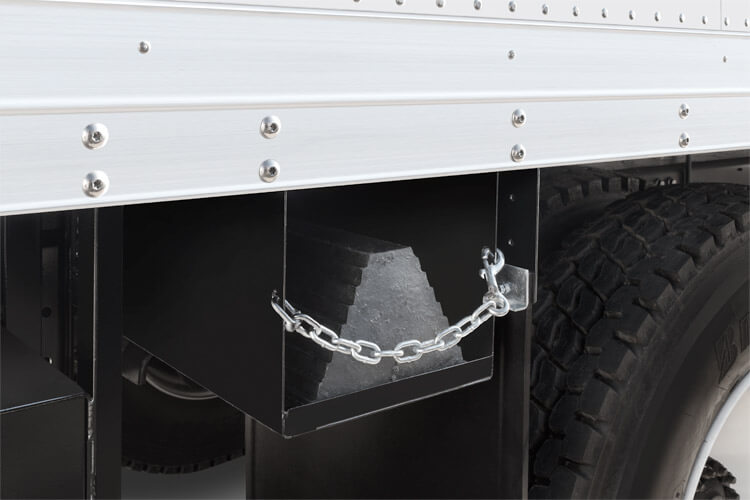

Wheel Chock

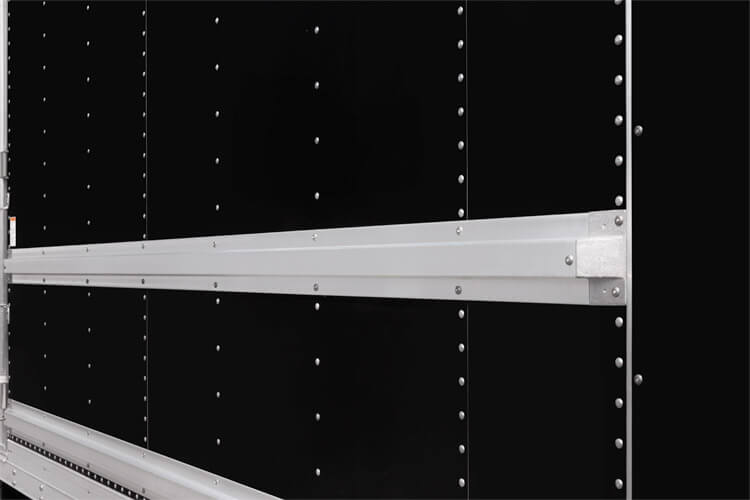

Rub Rail
Back-up Camera

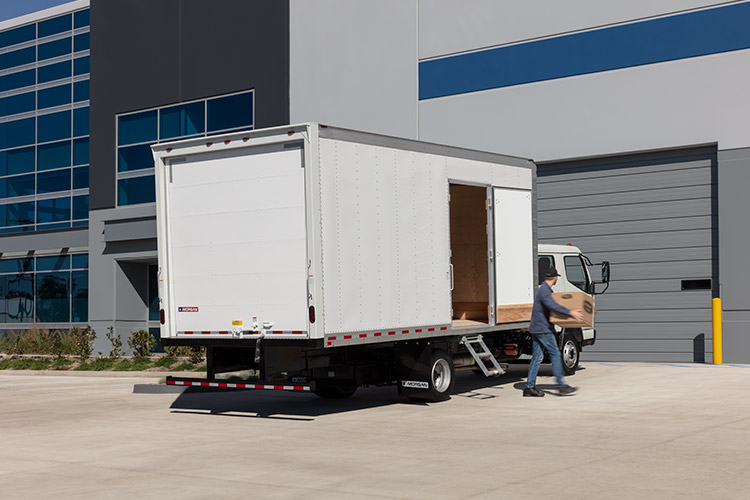

Side Cargo Access Door
E-Now Solar Panel System
Stainless Steel Rear Frame
Trim Leaf Deflector
Skirting

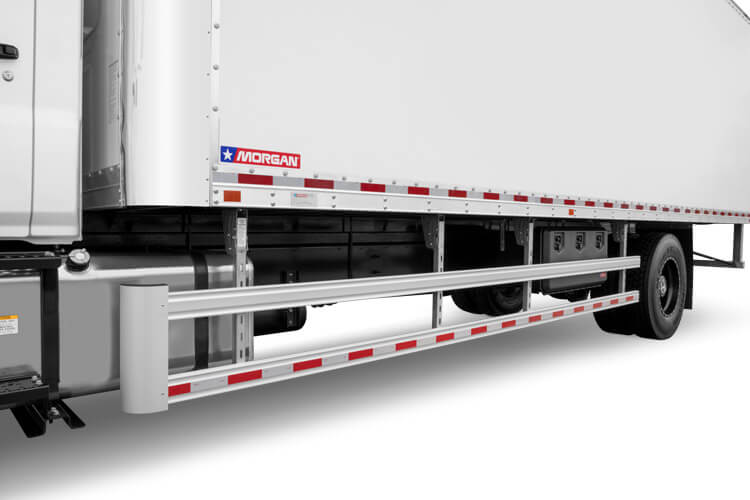

Side Guard
Full Paint, Decal
Decal Graphics
Decal Graphics
Smooth Wall Aluminum
Translucent Roofs

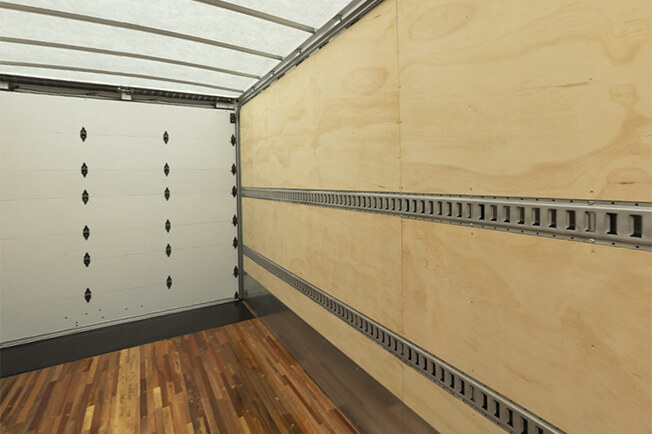

Plywood Lined

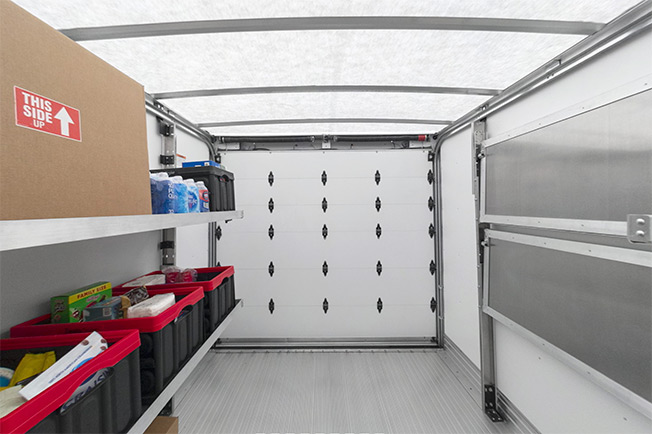

Foldable Metal Shelving
Various Shelving Packages Available
Best Lock
Forklift Guide

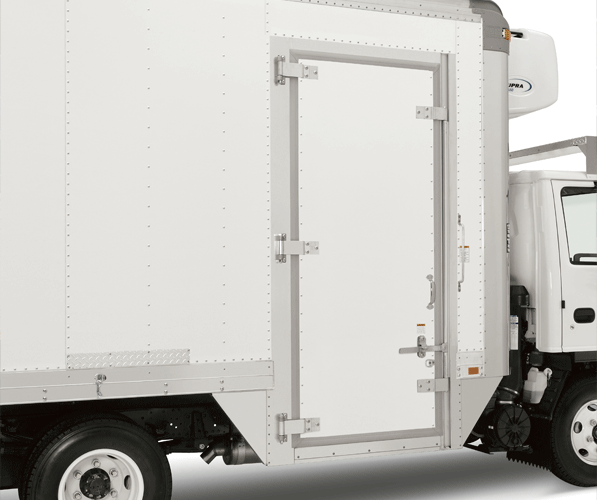

Single Panel Side Door

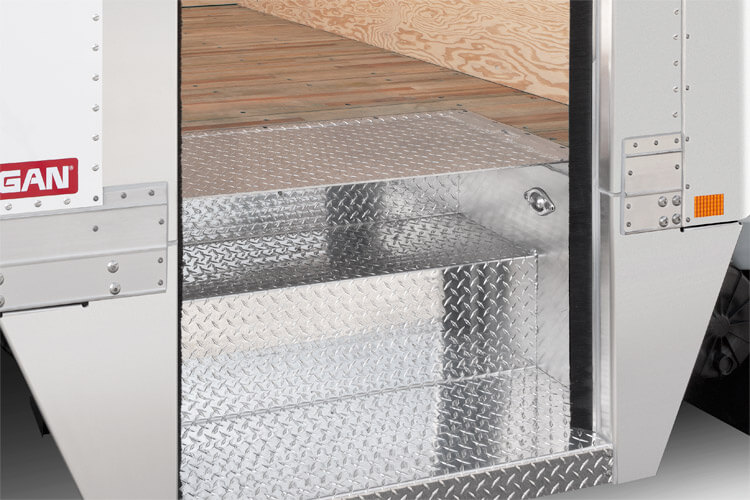

Step-Well Cover

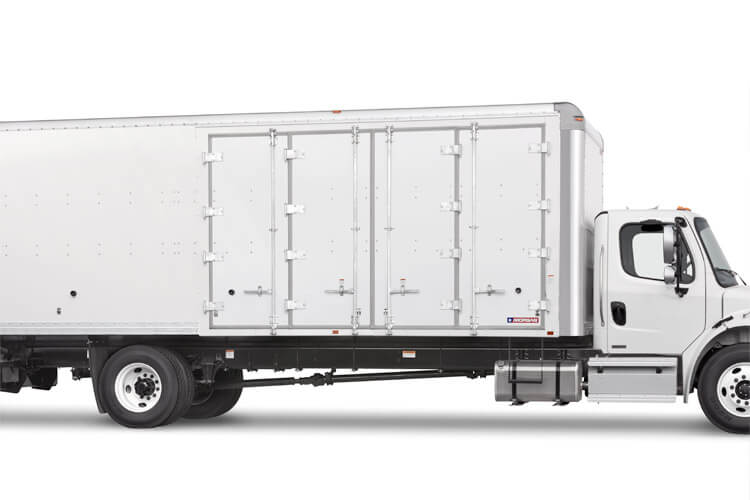

4 Panel Side Door
Overhead Side Door
Maximizer - Roll-Up
Maximizer - Roll-Up
Maximizer Handrail
Single Panel Side Door

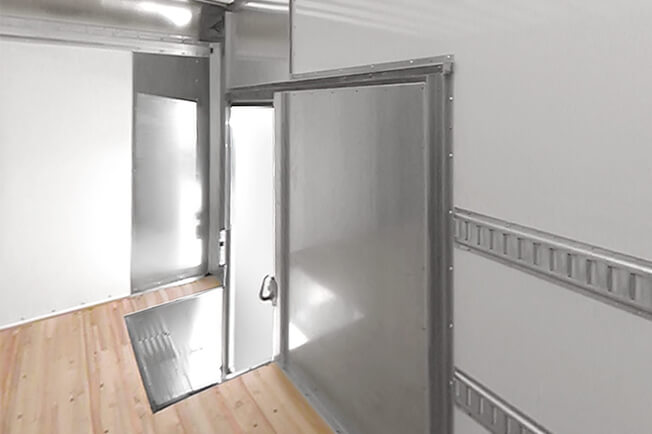

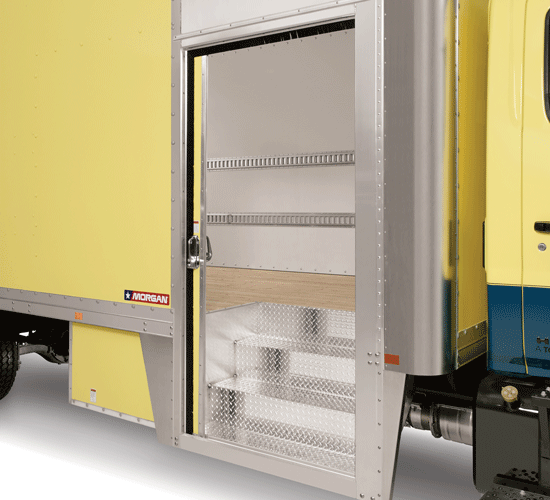

Maximizer
Maximizer Side Access - Swing
Maximizer Side Access - Slide
Side Door Pullout Step w/ Platform (3 Steps) (shown with side guards)
Side Door Pullout Step w/ Platform (3 Steps) (shown with side guards)
Takler Side Door Pullout Step w/o Platform (1 Step)
Takler Side Door Pullout Step w/o Platform (1 Step)
Stirrup Step
Takler Side Door Pullout Step w/o Platform (2 Steps)
Takler Side Door Pullout Step w/o Platform (2 Steps)
Takler Side Door Pullout Step w/ Platform (3 Steps)
Takler Side Door Pullout Step w/ Platform (3 Steps)
3 Step Stirrup w/ Support Brace
Pull Out Step
Side Door Folding Step w/o Platform (2 Steps)

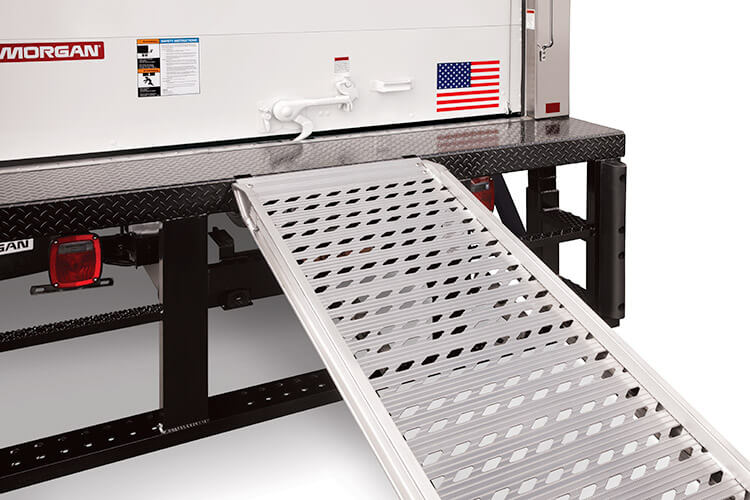

Ventilated Walk Ramp
Standard Walk Ramp
Melcher Walkramp
Walkramp Carrier
Morgan Truck Body has been the premier producer of truck and van bodies in North America for 72 years. We manufacture Class 3 to Class 7 (GVW) box truck/straight truck bodies to serve the dry freight and refrigerated product markets, as well as a wide range of specialty bodies to serve farmers, ranchers, contractors, landscapers, equipment and material-haulers, private/municipal service-providers, and more! In fact, Morgan specializes in satisfying unique needs – from accommodating cargo of every configuration, to designing features for tomorrow's applications! At Morgan, your body will always be THE BEST BODY for your business!
