Morgan's Fastrak Dry Freight body provides the quality construction and standard features you need, without an overabundance of options that can delay delivery.

Dry Freight Program

When you need a quality truck body and you need it fast, Morgan's Fastrak Dry Freight body delivers! Morgan can provide a quick turnaround!

28-Day Turn-Around Icon

Quick Turnaround

Multiple Locations Icon

Multiple Locations

Fast Delivery Icon

Fast Delivery

Various Sizes Available Icon

Various Sizes Available

Morgan’s pre-configured fastrak bodies are the answer!

Choose the cargo interior package that you prefer between 4 different options. Numerous body sizes are available, as well as specific liftgates for this program. Morgan’s Fastrak Dry Freight Program is available at (4) locations across the country. Start your order today and get on the road fast.

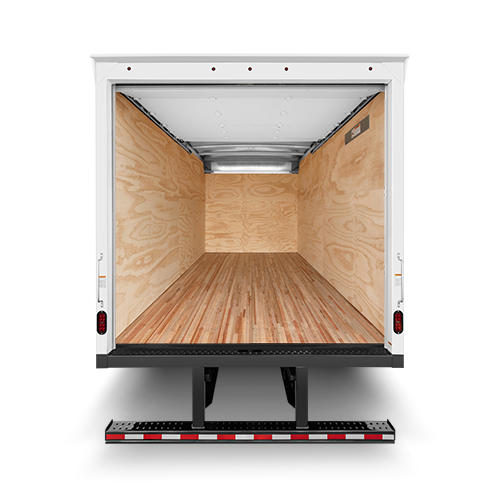

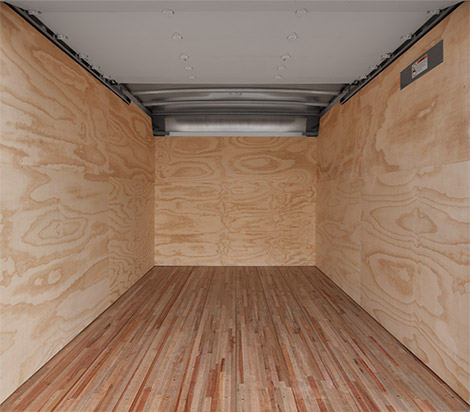

FT-1 Image

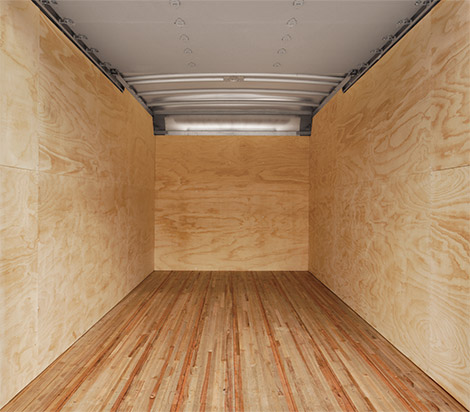

FT-1

3/8” plywood sides, 1/2” plywood front for unobstructed cargo loading.

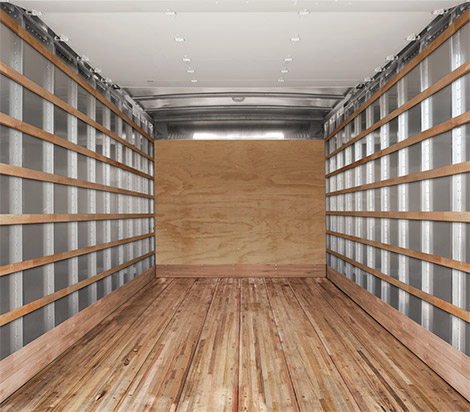

FT-2 Image

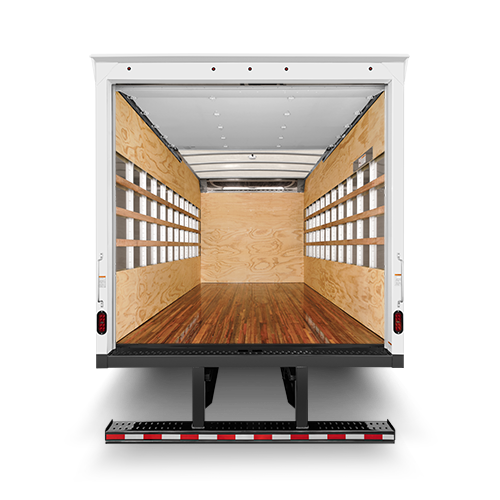

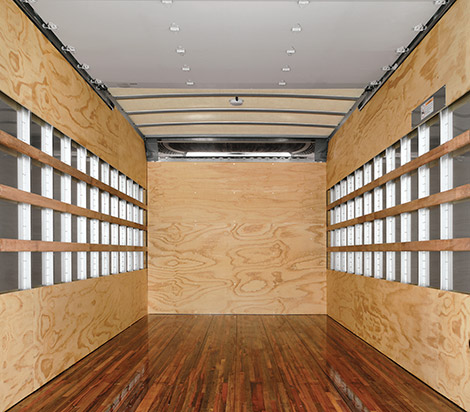

FT-2

3/8” plywood sides and partially exposed wood slats to provide varying degrees of sidewall protection, 1/2” plywood front.

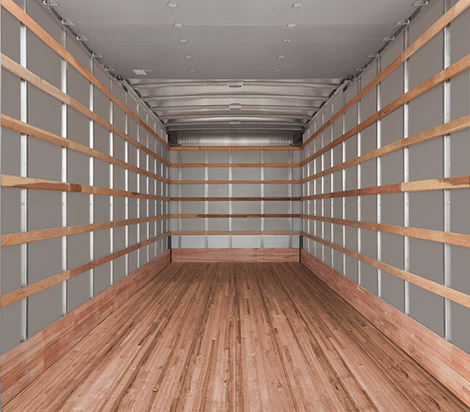

FT-3 Image

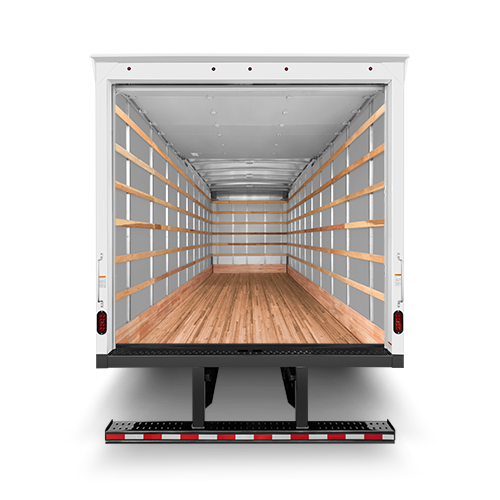

FT-3

A wood scuff-guard with 6 rows of durable wood slats for easy cargo control anywhere along the perimeter.

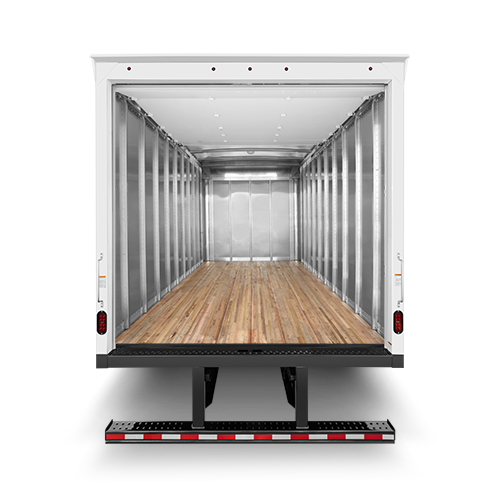

FT-4 Image

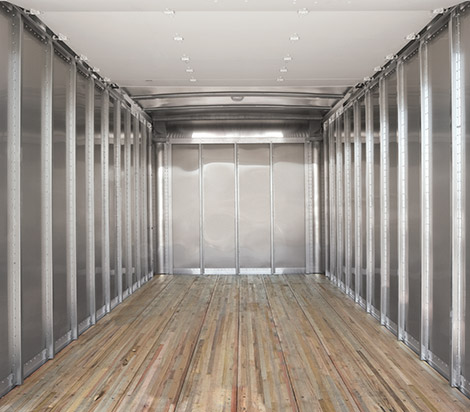

FT-4

No liner, for instances where tie downs are unnecessary and cargo is unlikely to shift.

Standard Features

Subframe 3" i-beam crossmembers on 12" centers with 4" longrail , mylar tape is applied between all steel subframe components and extruded aluminum lower bottom rails to prevent corrosion
Floor 1- 1/8" laminated hardwood fastened to subframe with two countersunk screws per floor board per cross member in a straight pattern, floor boards are ship lapped and preundercoated for protection from elements
Threshold Steel galvanized angle flush to rear
Rear Door Overhead roll-up door
Rear Frame Galvannealed steel-painted imron white, includes built-in header design, clearance light protector and rain deflector, curbside and roadside grab-handles
Roof .032" one-piece aluminum sheet with anti-snag roof bows on 24" centers with crowned roof design which prevents water/ice pooling
Side Wall Extruded aluminum top and bottom rails with 1 3/8" deep extruded aluminum hat posts installed 16" on-center, provide superior structural support for your truck body and your payload. And the .040" aluminum skin exceeds industry standards. Aluminum is also corrosion-resistant, making it an excellent choice when it comes to protecting your cargo from the elements.
Front End Five-year limited warranty
Bumper 4" tubular bumper with pooched surface and closure plate
Interior Lighting (1) Domelight with indicator switch mounted in cab dash
Exterior Lighting LED sealed clearance lights, per FMVSS 108 installed in front corner caps, side top rails and five across rear header
Mounting Full mount U-bolt
Mudflaps Morgan black

Authorized Body Combinations

96" Body Width
Height Lengths
12' 14' 16' 18' 20' 22' 24' 26'
85" Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon
91" Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon
97" Red X Icon Red X Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon
103" Red X Icon Red X Icon Red X Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon

102" Body Width
Height Lengths
18' 20' 22' 24' 26'
97" Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon
103" Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon Green Checkmark Icon

Swipe to see the authorized body combinations

Selectable Liftgate Options

Vendor

Gate Model

Width

Bed HT
Waltco HLF/APBG-30 KN GALV 96EP BPR WR ROPE 96 46-60
Waltco HLF/APBG-30 KN GALV 102EP BPR WR ROPE 102 46-60
Waltco EMW-25LBPD 48 X 84 ST 96EP W/O BUMPER 96 37-44
Waltco EMW-25LBPD 48 X 84 ST 102EP W/O BUMPER 102 37-44
Waltco CW-20LBPD 36X72 96 34-45
Palfinger ILP-33HPD 60X80 AL GA 96EP 9M 21 2-ST CB PLS 96 45-53
Palfinger ILP-33HPD 60X80 AL GA 102EP 9M 21 2-ST CB PLS 102 45-53
Palfinger PLR-25SGD 48 X 80 STL W/O BUMPER 96 38-52
Palfinger PLR-25SGD 48 X 80 STL W/O BUMPER 102 38-52
Maxon GPTB-3 AP .25 96EP GALV 2 STP CBL BPR 13.5 PE 96 46-55
Maxon GPTB-3 AP .25 102EP GALV 2 STP CBL BPR 13.5 PE 102 46-55
Maxon LG M TE-25LGD PNT 48X80 ST 96EP 1-STP BPR PE 96 38-44
Maxon LG M TE-25LGD PNT 48X80 ST 102EP 1-STP BPR PE 102 38-44

Swipe to see the selectable liftgate options

Available Fastrak Locations

Morgan Truck Bodys’ nationwide presence offers all our customers unmatched service and support no matter where they may be in North America.

Build and quote your truck body to exact specifications.

Morgan Truck Body

Configurator

Every Angle | Inside and Out | 360° Rotation + Zoom

Build and quote your truck body to exact specifications. Choose your preferred OEM chassis, truck body dimensions, construction preferences, access points, interior options, and exterior options!

Build and Quote Yours Now
Fastrak Program 28-Day Brochure Cover Image

Brochure

Download the brochure to get more information about this program.

VIEW BROCHURE

Need a Dry Freight Body Quick? Fastrak delivers!

Products as shown may include optional equipment that is not part of the standard Morgan Truck Body configuration. Some product images may differ from current configurations and may not be available as depicted at the time of your order. NOTE: All dimensions, weights, and measurements specified herein are subject to Morgan’s manufacturing tolerances, may change without notice, and may vary depending on options selected. Please Contact Morgan Representative for available options, complete up-to-date specifications and for measurements for your particular truck body and chassis specifications.
