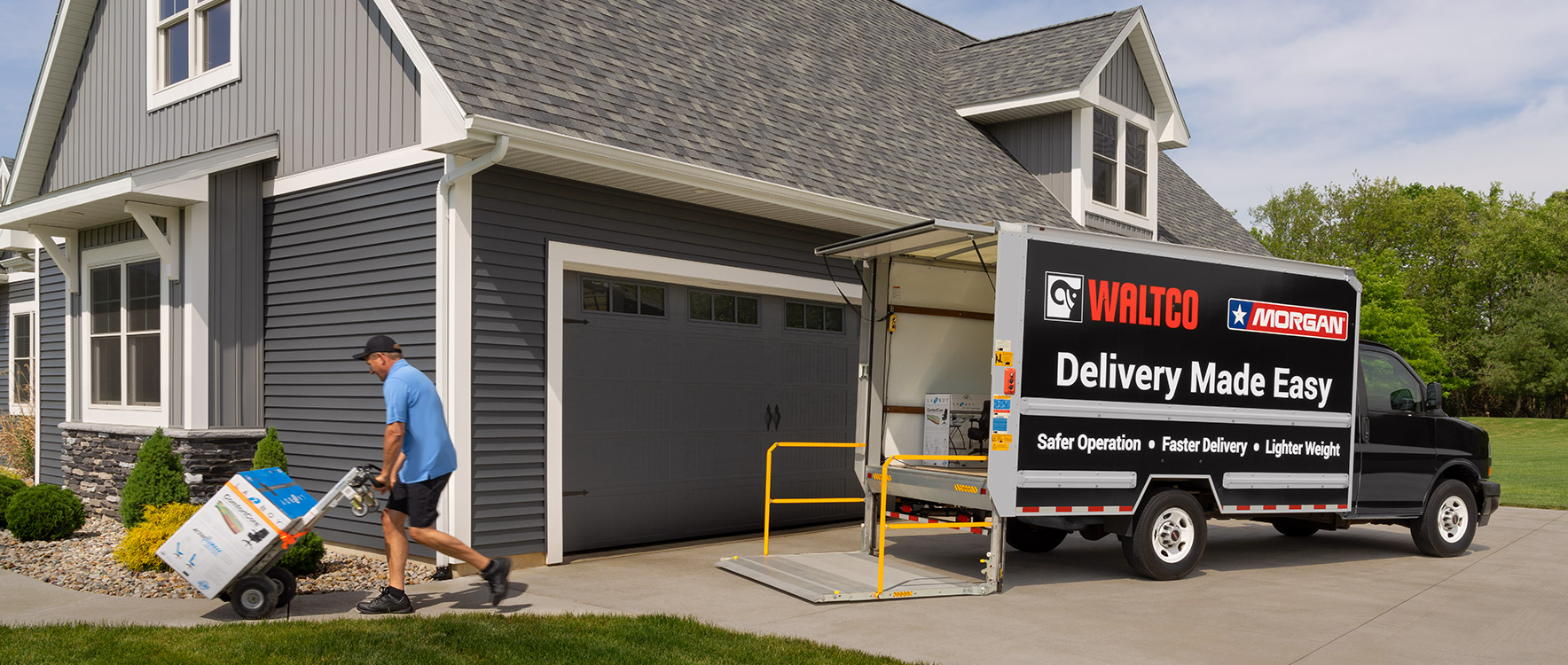

Final mile delivery is a booming market, but there is a constant battle to improve efficiency as the market sector evolves from basic goods to bulky, expensive home goods. Keep delivery promises and deliver more, faster and safer, for both driver and cargo, with the WALTCO FM Series. It gives you all the advantages of a liftgate, without the added weight.

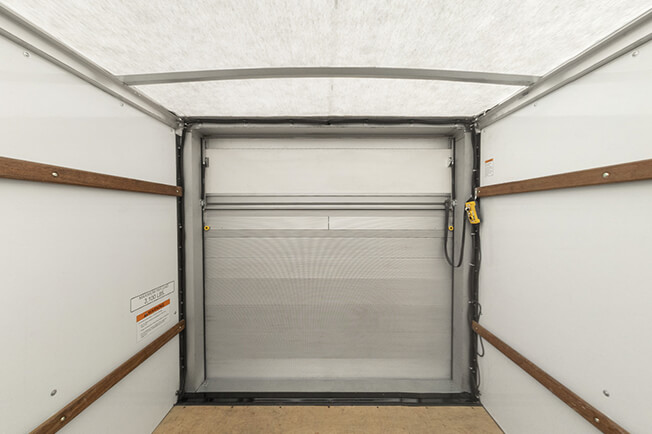

The innovative solution, WALTCO FM Series is a full-closure liftgate functioning as a combined rear door and liftgate. It can safely handle up to 1,600 pounds of cargo as soon as you open up the back of your truck by lowering the liftgate – no wasted delivery time. WALTCO FM Series reduces liftgate operation time by 45%, when compared to a traditional flipaway liftgate.
The WALTCO FM Series integrated back door and liftgate saves weight. Fuel consumption is cut by up to 2.5% since it weighs on average 500 pounds less than a traditional liftgate, which reduces the carbon footprint.
Using a liftgate means safe operation for both cargo and delivery drivers. Ergonomic operation minimizes workplace accidents and boosts driver satisfaction. You won't have to worry about delivery drivers compromising safety for efficiency since the FM Series acts as the rear door and must be utilized to access payload.
| Model | Capacity | Platform | Ramp | Body Type | Body Size | Approx. Wgt. |
|---|---|---|---|---|---|---|
| FM1000 | 1,000 lbs | 50" × 75" | 8" | Morgan Mini-Mover (Coming Soon) | 80" W × 78" H | 564 |
| FM1000 | 1,000 lbs | 50" × 91" | 8" | Morgan CityMax | 96" W × 85" H | 646 |
| FM1000 | 1,000 lbs | 50" × 91" | 8" | Morgan CityMax | 96" W × 91" H | 653 |
| FM1600 | 1,600 lbs | 50" × 91" | 8" | Morgan Gold Star | 96" W × 85" H | 676 |
| FM1600 | 1,600 lbs | 50" × 91" | 8" | Morgan Gold Star | 96" W × 91" H | 683 |
Operation
Installation
Final Mile Specialist for Small Parcel Delivery
The Industry Standard Box Truck - Built Your Way
The Mini-Box Truck Body with More
Use your mouse or finger to rotate the interactive 360 tour. Pinch/scroll to zoom in and out.
Find out how the Waltco FM Series light-duty liftgate can make final mile deliveries easier and more profitable! Click below to learn more!
Check out Morgan's standard dry freight brochure to learn about what makes the Gold Star the Gold Standard of the industry!
Morgan Truck Body has been the premier producer of truck and van bodies in North America for 72 years. We manufacture Class 3 to Class 7 (GVW) box truck/straight truck bodies to serve the dry freight and refrigerated product markets, as well as a wide range of specialty bodies to serve farmers, ranchers, contractors, landscapers, equipment and material-haulers, private/municipal service-providers, and more! In fact, Morgan specializes in satisfying unique needs – from accommodating cargo of every configuration, to designing features for tomorrow's applications! At Morgan, your body will always be THE BEST BODY for your business!
